Solar Powered Submersible Well Pumps
Baile Pump can provide 3" , 4" , 6" , 8" and 10" solar powered submersible well pumps. Different types of submersible solar pumps are available: submersible screw solar pumps, encapsulated submersible solar pumps or submersible solar pumps with oil cooled motor. You can select stainless steel or plastic impeller according to your water pumping requirements. Our submersible pumps can deliver perfect performance whether in low voltage (< 110V) or high voltage (110-380V) working conditions.
-
3" Submersible Screw Pump, Solar Well Pump, BLSSMax.flow range: 1 m³/h ~ 2.3m³/h
Max. head range: 30m~180m
Pump voltage: DC24V, DC48V, DC72V
Pump outer diameter: 3" -
3" Submersible Solar Pump, DC Submersible Well Pump (Plastic Impeller), BLSCMax. flow range: 3 m³/h ~ 7,5m³/h
Max. head range: 25m~180m
Pump voltage: DC24V, DC48V, DC72V, DC110V
Pump outer diameter: 3" -
4" Submersible Solar Pump, DC Submersible Well Pump (Plastic Impeller), BLSCMax. flow range: 4.5 m³/h ~ 20m³/h
Max. head range: 36m~135m
Pump voltage: DC24V, DC48V, DC72V, DC110V
Pump outer diameter: 4" -
3" Solar Submersible Pump, DC Solar Water Pump (SS304 Impeller), BLSSMax. flow range: 2.5 m³/h ~ 5.4m³/h
Max. head range: 15m~120m
Pump voltage: DC24V, DC48V, DC72V, DC110V -
4" Solar Submersible Pump, DC Solar Water Pump ( SS304 Impeller), BLSSMax. flow range: 3.8 m³/h ~ 42m³/h
Max. head range: 15m~154m
Pump voltage: DC48V, DC72V, DC96V
Pump outer diameter: 4" -
4" DC Solar Water Pump, Submersible Solar Pump (Encapsulated Submersible Motor, Plastic Impeller), BLSCPMax. flow range: 4.5 m³/h ~ 20m³/h
Max. head range: 36m~135m
Pump voltage: DC48V, DC72V, DC110V
Pump outer diameter: 4" -
4" DC Solar Water Pump (Encapsulated Submersible Motor, SS304 Impeller), BLSSPMax. flow range: 3.7/m³/h ~ 42/m³/h
Max. head range: 20~154m
Pump voltage: DC48V, DC72V, DC96V
Pump outer diameter: 4" -

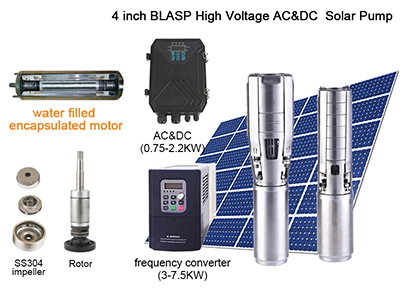

AC/DC Submersible Solar Water PumpsAble to be powered by AC or DC power in case of the solar power input shortage.
NSK bearing and stainless-steel rotor for less abrasion and wearing.
High-quality mechanical seal for great water leakproofness, wear resistance and long lifespan.
Features
- Permanent magnet synchronous motor.
- NSK bearing and stainless steel 304 rotor shaft.
- Equipped with high-quality solar charge controller.
- MPPT technology incorporated to maximize the power generation efficiency of solar panel array.
- Reverse polarity alarm protection and dry running alarm protection.
- Wide open circuit input voltage range of solar panel: DC20V-DC800V.
Applications

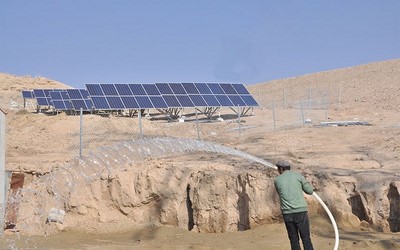

Water supply in arid areas
Domestic water needs

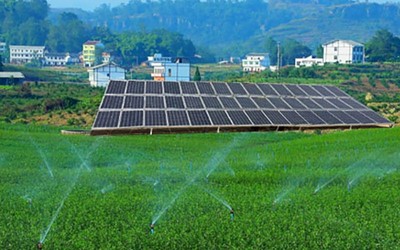

Agricultural irrigation
Water supply in desert
Drinking water supply
In addition to stock solar water pumping products, we can also provide customized solar water pumps to fit customer’s specific requirements. We offer high-quality technical support and after-sales service to solve your problems when using our water pumps.
Each solar water pump is delivered with optimum quality by virtue of our strong manufacturing capabilities, high-quality pump parts and strict quality control system. We never stop improving the performance of solar water pumps as well as reducing cost to help our customers improve competitiveness.
